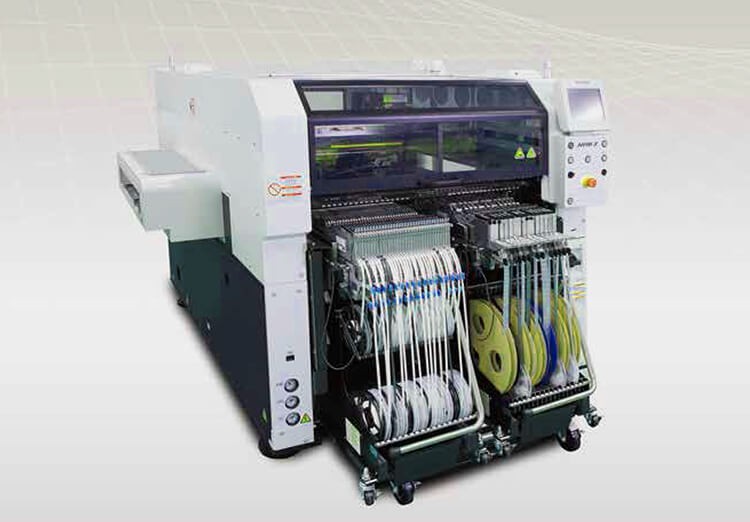

Panasonic NPM WX WXS Pick and Place Machine

Max PCB:L 750 × W 610mm
Placing Speed: 86000CPH
Max Feeder: 136 reels
Weight: 2740kg

Panasonic NPM WX WXS Pick and Place Machine

Specifications:

Panasonic's next generation of mounting production (X series) concept

“Smart manufacturing"

More line throughput, better quality and lower cost with fully automated mounting system floor

Stable operation based on the autonomic function - Autonomous line control

APC system and automatic recovery option

Labor-saving, improved utilization - Concentrated control

Floor management system and remote operation option

Reduced work variations - Navigation/automated items

Feeder setup navigation, component supply navigation and automated items

Panasonic NPM-WX WXS Pick and Place Machine

Model ID

NPM-WX

NPM-WXS

Model No.

NM-EJM9D

NM-EJM2E

PCB
dimensions
(mm)

Single-lane mode

Batch mounting : L 50 × W 50 ~ L 750 × W 610
2-position mounting : L 50 × W 50 ~ L 350 × W 610

Dual-lane mode

Dual transfer (Batch) : L 50 × W 50 ~ L 750 × W 300
Dual transfer (2-position) : L50 × W 50 ~ L 350 × W 300

Single transfer (Batch) : L 50 × W 50 ~ L 750 × W 590
Single transfer (2-position) : L50 × W 50 ~ L 350 × W 590

Electric source

3-phase AC 200, 220, 380, 400, 420, 480 V 3.0 kVA

3-phase AC 200, 220, 380, 400, 420, 480 V 2.1 kVA

Pneumatic source *1

Min.0.5 MPa、200 L /min (A.N.R.)

Dimensions (mm)

W 1 410 *2 × D 2 570 *3 × H 1 444 *4

Mass

2 740 kg
(Only for main body : This differs depending on the option configuration.)

2 660kg
(Only for main body : This differs depending on the option configuration.)

Placement head

1 head on each side (front, rear)

1 head (rear camera is optional)

Component
supply

Taping

Tape : 4 ~ 56 / 72 / 88 / 104 mm

Front rear 17-slot feeder cart specifications : Max. 136 product types (4, 8mm tape)

Stick

Front rear 17-slot feeder cart specifications :
Max. 32 product types (single stick feeder)

Front rear 17-slot feeder cart specifications :
Max. 16 product types *5 (single stick feeder)

Tray

One side tray specifications : Max.24, Front-rear tray specifications : Max.48

Placement head

Lightweight
16-nozzle head V2
(Per head)

Lightweight
8-nozzle head
(Per head)

4-nozzle head
(Per head)

3-nozzle head V2
(Per head)

Max. speed

43 000 cph
(0.084 s / chip)

23 000 cph
(0.155 s / chip)

8 400 cph
(0.429 s / chip)
7 800 cph
(0.462 s / QFP feeder)
7 100 cph
(0.507 s / QFP tray) *8

9 400 cph
(0.383 s / chip)
7 300 cph
(0.493 s / QFP feeder)
6 350 cph
(0.567 s / QFP tray) *9

Placement accuracy
(Cpk≧1)

±25 μm/ chip

±25 μm/ chip
±40 μm/QFP □12 mm Under
±25 μm/QFP □12 mm ~ □32 mm

±20 μm/ QFP

±20 μm/ QFP

Component dimensions
(mm)

0201 chip *6*7 / 03015 chip *6
0402 chip *6 ~ L 6 × W 6 × T 3

0402 chip *6 ~ L 45 × W 45 × T 12 or L 100 × W 40 × T 12

0603 chip ~ L 120 × W 90 × T 40 or L 150 × W 25 × T 40

0603 chip ~ L 120 × W 90 × T 40 or L 150 × W 25 × T 40

*1 : Only for main body
*2 : 2 010 mm in width if extension conveyors (300 mm) are placed on both sides.
*3 : Dimension D including feeder cart
*4 : Excluding the monitor, signal tower and ceiling fan cover.
*5 : Stick feeders cannot be used on the rear feeder cart of NPM-WXS.
*6 : 0201/03015/0402 component requires a specific nozzle/tape feeder.
*7 : 0201 component placement is optional. (Under conditions specified by Panasonic)
*8 : For any QFP □20 mm or less in size
*9 : For any QFP □28 mm or less in size
* Placement tact time and accuracy values may differ slightly depending on conditions.
* Please refer to the specification booklet for details.
