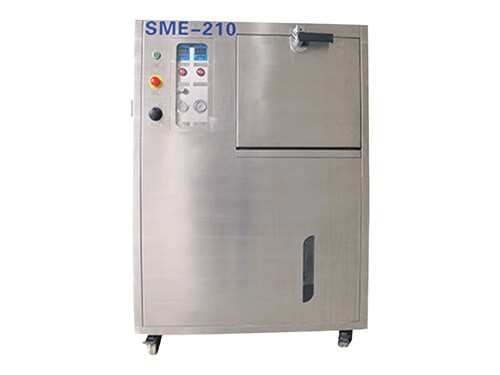

SMT Mis Print PCB Cleaning Machine SME-210

Clean basket size L420 x W420 x H200 (mm)
Clean tank capacity 50L
Clean time 4~10min
Machine weight 210KG

SMT Mis Print PCB Cleaning Machine SME-210

Specifications:

SMT Mis Print PCB Cleaning Machine SME-210

SME-210 pneumatic PCB Auto Cleaning Machine is designed to clean mis print PCB solder paste, squeegee. Driven by compressed air, the machine clean PCB from upper and lower side, by “One button” easy operation, the machine complete “clean + dry “process automatically; patent designed rotation rods guarantee efficient clean and high quality cleaning result.

Machine Features:

1.SUS 304 machine structure, resist Acid and Alkali corrosion.

2.Totally Driven by compressed air , no electric power, totally no fire or explosion risk caused by electrical spark .

3.One button easy operation, clean and dry complete automatically.

4.Push-pull cleaning basket, easy to put and take out cleaning parts, no need special jigs.

5.Equipped auto liquid fill in and discharge function.

6.Liquid recycle use to ensure low consumption.

7.Inner-lock safety door, once open, machine stopped immediately to ensure operator safety.

8.3-level precise filtering system to make liquid clean by recycled use.

9.Super well-known Pneumatic parts from all over the word ensure stable use of the machine.

10.Modular design ensure easy maintenance.

Item

SME-210 Spec

Clean basket size

L420 x W420 x H200 (mm)

Clean tank capacity

50L

Clean time

4~10min

Dry time

4~10min

Air supply

0.5~0.7Mpa

Air consumption

200~600L/min

Clean method

360°rotation spray solvent clean+ air blow dry

Filter system

20um/5um/1um 3-level filter

Machine size

L1060 x W800 x H1600(mm)

Machine weight

210KG
