ERSA VERSAFLOW 4 XL Selective Soldering Machine

Miniwave, approx. 13 kg
Max. PCB size 680 x 610 mm
Dimension: 4,700x1,800x1,600 mm

ERSA VERSAFLOW 4 XL Selective Soldering Machine

Specifications:

ERSA VERSAFLOW 4 XL Selective Soldering Machine

High-end selective soldering system to integrate into in-line manufacturing concepts

Max. PCB size 680 x 610 mm (option 1,200 x 610 mm)

Product change without downtime

VERSACAM for solder wave height measurement on the fly

VERSAFLEX solder module x/y/z-variable

Parallel process through separation of fluxing, preheating and soldering cycle

Use of up to 4 flux spray heads with two independent axes (2 spray heads per axis)

Flexible system configuration on account of modularity of the design

Ideal for linking to manual workstations or peripheral equipment

Secure process control with monitoring of all relevant processes

CAD Assistant 4 for offline programming

Link for traceability systems for process control

State-of-the-art user interface: ERSASOFT 5

VERSAFLOW 4 XL

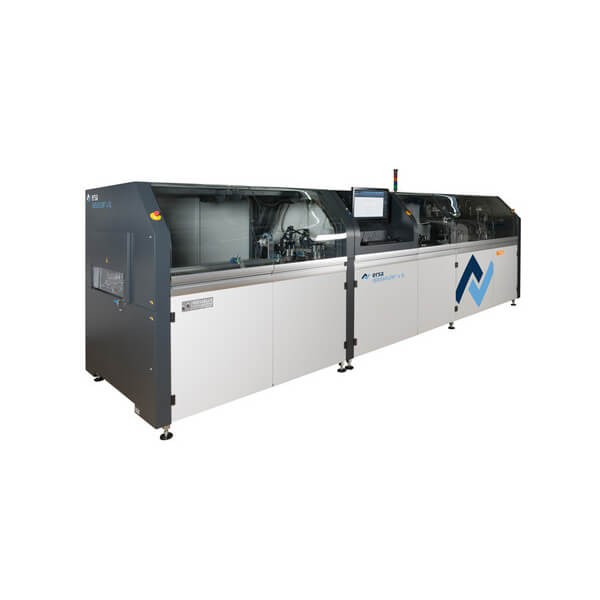

Printed circuit board formats of up to 610 x 1,200 mm can be soldered efficiently and safely with the VERSAFLOW 4 XL making it a perfect system for large, highly integrated assemblies or LED applications. Featuring the completely new VERSAFLUX flux module and VERSAFLEX solder module, the VESRAFLOW 4 XL is extremely flexible and manages most diverse solder jobs. Depending on the application and on the throughput requirements called for, additional preheat and solder modules can be integrated into the system. In the maximum configuration level of the VERSAFLOW 4 XL, the system can operate 3 VERSAFLEX modules and 4 preheat modules. As an option it is possible to integrate a preheat module in front of the flux module.

The VERSAFLOW 4 XL offers an interesting option for smaller assemblies up to a max. length of 330 mm. Thanks to an additional stopper in each module, two PCBs can be processed separately but simultaneously. This option doubles system throughput and does away with dual track conveyor systems. The complex machine movements are controlled using the intuitive operator software ERSASOFT 5. The modern and future-oriented CAD Assistant 4 is integrated in this software, which means complex programming of the solder parameters is a thing of the past.

Dimensions

Length: 4,700 mm

Width: 1,800 mm

Height: 1,600 mm

Conveyor system

Roller conveyor

PCB width 50-610 mm

PCB length 127-680 mm (1,200 mm option)

PCB weight 15 kg, 20 kg (option)

Flux module

VERSAFLUX module with 2 independent axis systems

High-precision spray fluxer

No. of spray heads per axis: up to 2

Preheat module

IR bottom-side (basis)

Top-side convection (option)

Solder module

VERSAFLEX solder module with 2 independent axis systems

Miniwave, approx. 13 kg

Options:

Roller conveyor for direct board handling

Programmable width adjustment

Max. PCB weight: 15 kg (heavy load conveyor 20 kg)

VERSAFLUX with 2 independent axis systems

High-precision drop jet fluxer with up to 2 spray heads per axis

2 different fluxes per module

Up to 4 preheat modules

IR preheaters, individually configurable, top-side convection heaters

Pyrometer to monitor temperature

Up to 3 VERSAFLEX solder modules with 2 independent axes, carrying one solder pot per axis

CAD Assistant 4

ERSASOFT 5 incl. integration of MES (Manufacturing Execution System)
