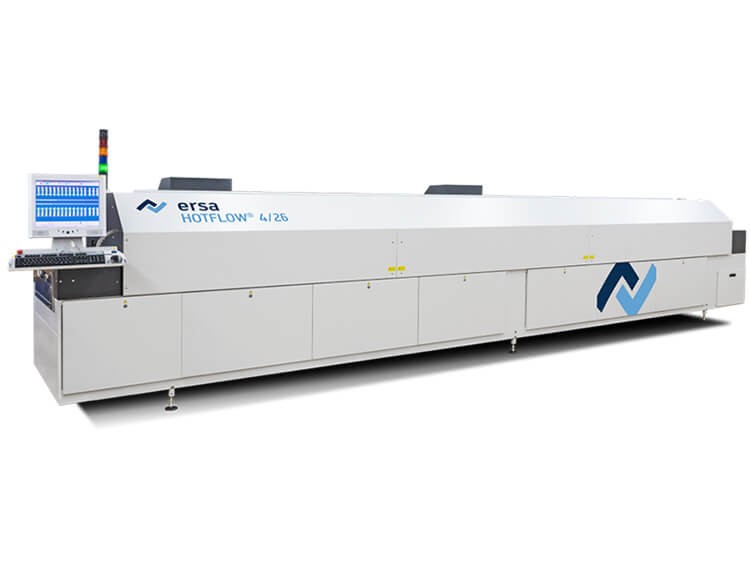

Ersa HOTFLOW 4/26 Reflow Oven

Max. PCB width: 560 mm
13 heating zones
Weight 2800KG
Dimension 7100x1410x1500mm

Ersa HOTFLOW 4/26 Reflow Oven

Specifications:

Ersa HOTFLOW 4/26 Reflow Oven

Excellent heat transfer with the most varied board assemblies

Rest-oxygen monitoring with low N2 consumption

Low energy consumption through intelligent energy management

Multi-level controlled cooling

Multi-level process gas cleaning system

"On the fly" maintenance for increased machine availability / uptime

Multi-track conveyor system (1-4)

Ersa Process Control (EPC) for continuous process monitoring

Ersa Auto Profiler software for quickly generating temperature profiles


Ersa HOTFLOW 4/26 Reflow Oven

The Ersa HOTFLOW 4/26 reflow system is of robust design and manufactured entirely from steel, welded air-tight, powder coated and with interior electric cabinet and a PC operating terminal. Features include the motorized hood opening, quick-change convection heater cassettes, multi-level process gas cleaning and a powerful and effective cooling zone.

Through Put

352PCB/hour

Heating Zones

26 zones

Solder Peak zones

3 zones

Cooling zones

4 zones

Power

400 V / 3 / N / PE - 50 Hz / 60 Hz

Compressed air

Yes

Min. PCB length

50 mm

Min. PCB width

50 mm

Max. PCB length

Not applicable mm

Max. PCB width

560 mm

Weight

2800KG

Dimension

7100x1410x1500mm

Conveyor system
Working width: 45-580 mm automatically infinitely adjustable
Clear passing height: +25 (35)/-37 mm
Centre support, automatically infinitely adjustable
Conveyor speed: 20-200 cm/min
Pin-and-chain conveyor with 3, 4 or 5 mm pins
Process zone
Process length: 4,790 mm
Heated length: 3,650 mm
Cooling length: 1,840 mm
Heating system
Up to 26 convections heating cassettes
(Preheat zone up to 26 cassettes, reflow zone up to 6 cassettes)
Volumetric flow rate each module, adjustable up to 500 m3/h
Rated power each module: 3.3 kW
Cooling
Up to 4 level cooling zone with water back cooling
Electrical data
400 V, 3 Phase, N, Ground, 50/60 Hz
Continuous output during operation: appr. 9-15 kW
Exhaust
Extraction capacity 2 stacks each 400 m3/h, monitored
