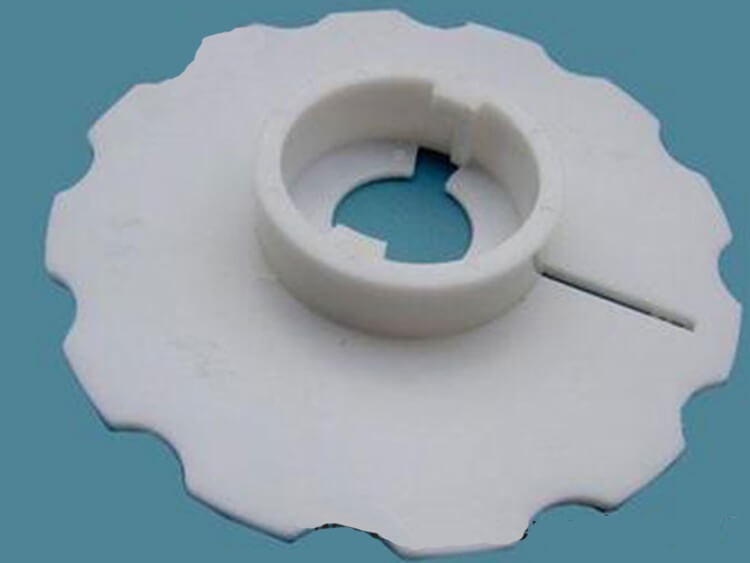

HANWHA 12mm Feeder Winding Pulley J2500509
Specifications:
HANWHA 12mm Feeder Winding Pulley J2500509
1 FC15-000922A COVER-COVER DRIVER Y 1
2 FC09-001485A BRACKET-CUSHION Y 2
3 PM02-000795A CUSHION-CABLE Y 2
4 FC29-007969A SUPPORT-Y CABLE DUCT 1 FC29-001084B
5 HP06-000457 FITTING 1
6 HP09-000127 MANIFOLD 1
7 FC29-900610 HEX SUPPORT 26 FC29-900611
8 FC09-001511A BRACKET-PANEL CON Y 1
9 AM03-007103B AP5_AXIS_IO_BOARD 1 J91741337A/ AM03-007103A
10 AM03-010695B ASSY,BOARD-HDUB_PANA_ASSY_B 5 AM03-004982E
11 FC09-001509D BRACKET-BKT AXIS BOARD D 1 FC09-001509B
12 FC09-001486A BRACKET-DIRVER T 1
13 FC09-001663A BRACKET-BKT CABLE R 1
14 EP06-000374 SERVO CONTROL-DRIVE 5 EP06-000182
15 FC09-001647A BRACKET-BKT SIDE SUB 1
16 FC18-902639 SEMUS NABE SCREW [M4*16] 10
17 FC05-000149A BASE-DRIVER Y DUCT 1
18 FC09-001984A BRACKET-BKT FAN SUB 1
19 FC09-001983A BRACKET-BKT FAN 1
20 AM03-006409A CABLE ASSY-CABLE ASSY-LR_ZR_DRV_FAN 1
21 FC09-002206A BRACKET-SIDE BKT 1 1
22 FC09-003108A BRACKET-SIDE_COVER 1 J70541115A
23 FC18-900910 CAPTIVE_FASTENERS 4
24 FC18-902838 SEMUS NABE SCREW 14
25 FC18-902749 SOCKET HEAD CAP SCREW M4*25 (NI/ZN) 4
26 FC18-90321938 FLAT WASHER [M4 (BL/ZN)] 4
27 FC18-902856 TRUSS SCREW 4
28 TO03-001042A CONNECTOR_CLIP 5
29 FC09-006580B BRACKET-AXIO BOARD CONNECTOR PROTECT B 1
30 FC09-007265A BRACKET-AXIS B PROTECT UPPER BKT 1
31 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1 Version 1.1
32 AM03-015857E ASSY,BOARD-FEEDER IO VER 2.0 1 (AM03-000819A / AM03-000819B/AM03-000819C/
AM03-000819C/ AM03-000819E: ~2016.12) Old: Version 1.6 New: Version 2.0 (2017.01~)
33 AM03-015154E ASSY,BOARD-CAN CONVEYOR IF_V3.0(WITH ILL 1
