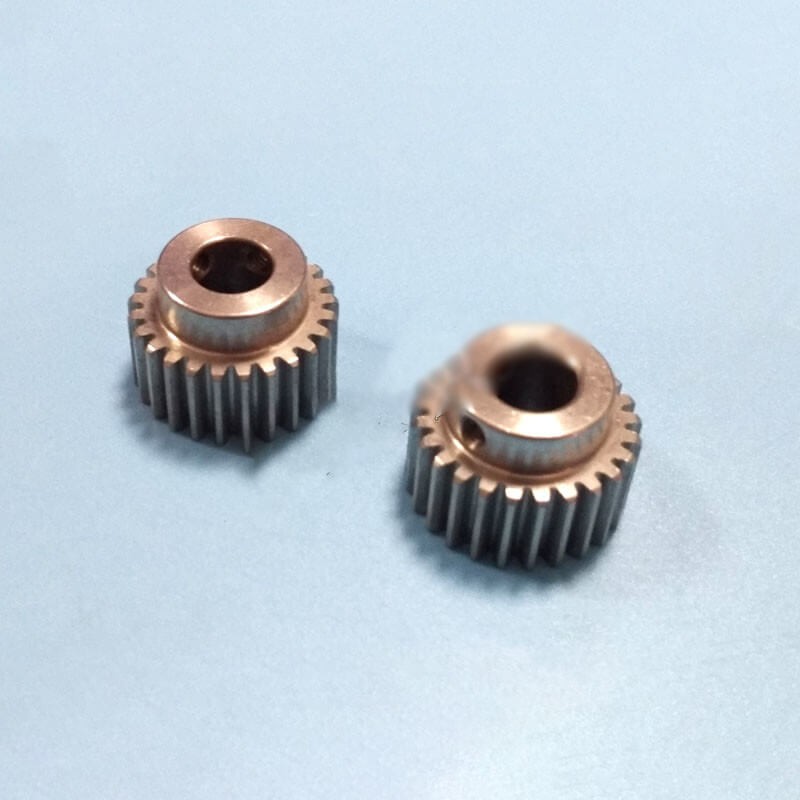

HANWHA CP40 Z Axis Motor Spur Gear 0140-621023-1M J2101888

HANWHA CP40 Z Axis Motor Spur Gear 0140-621023-1M J2101888

Specifications:

HANWHA CP40 Z Axis Motor Spur Gear 0140-621023-1M J2101888

31 MC11-000434A CAM-SM411PLUS_CAM 2

32 AM03-015567A CABLE ASSY-CABLE ASSY-SW_HOME_SENSOR 1

33 FC09-001557A BRACKET-S_SENSOR_BKT 1

34 FC29-001100A DOG-S_SENSOR_DOG 1

35 FC30-000803A PLATE-MIRROR_LINK_1 1

36 FC18-902841 SOCKET SET SCREW [M3*4 (BL/ZN)] 2

37 J7055557A BEARING HOUSING 2

38 FC18-901347 E-RING 2

1 AM03-008031A CABLE ASSY-R1_MOTOR_MD038 5

2 FC09-001493A BRACKET-Z_SENSOR_DOG 1

3 FC29-004278A PIN 1 J7155541A

4 FC09-001491A Z_CAP 1

5 HP06-900059 BOB ELBOW FITTING 1

6 MC13-000268 LM GUIDE 1 MC13-000116

7 FC29-001047C HOUSING-Z_ROD_HOUSING 1 FC29-001047A/ FC29-001047B

8 FC09-001492B BRACKET-Z_BELT_CLAMP 1 FC09-001492A

9 FC09-001504A BRACKET-REF_PLATE 1

10 FC30-000797A PLATE-INSULATION_PLATE 1

11 FC30-000798A PLATE-STEP_MOTOR_PLATE 5 FC30-000927A

12 MC19-000340A PULLEY-R_MOTOR_PULLEY 1

13 AM03-015566A CABLE ASSY-CABLE ASSY-R_HOME_SENSOR 1 EP19-900134 / AM03-005582

14 MC05-000117 TIMING BELT 1 FC09-001501A Z1.3.5.7.9

15 MC05-000119 TIMING BELT 1 MC05-000117 Z2.4.6.8.10

16 FC09-001502B BRACKET-Z_IDLE_BODY 1 FC09-001502A

17 J6601140 BALL BEARING 2 J66011095A

18 J71551848A Z_IDLER_PULLEY 1 MC19-000341A

19 J70551874A Z_IDLE_SHAFT 1

20 HP07-000094A Y_PACKING 1

21 FC09-001490A BRACKET-LOCK_NUT_Z 1

22 FC18-001724A COVER-OPEN_DOOR_A 1 FC18-000960

23 MC03-900127 BALL BEARING 2

24 FC09-001489A BRACKET-Z_TOP_HOUSING 1

25 MC13-000172 SPLINE,BALL 1 MC13-000124

26 FC30-000927A PLATE-BEARING_P_PLATE 1

27 FC09-001494A BRACKET-S_PULLEY_CLAMP 1

28 FC18-000967 SCREW-T_SPINDLE_SCREW 1

29 MC19-000339A PULLEY-SPINDLE_PULLEY 1

30 MC05-000120 TIMING BELT 1 MC05-900171

31 J90551225A_AS NOZZLE_HOLDER_ASSY 10
