tip sizes Ø0.5/Ø0.16 is applied for samsung pick and place SMT machines such as SM421, SM482, SM411, SM471, SM481, SM482, DECAN, CP45NEO, SM320 , SM310, SM411FX, SM411N, SM411FN, SM421N, SM421FN, SM431, SM431L, SM451, SLM110 ,SLM120, Excen, SM168, SFM2, STM1, Excen.

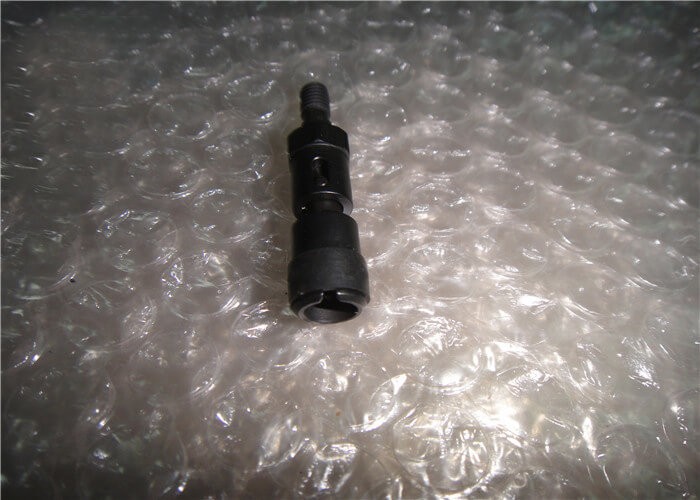

HANWHA Nozzle Holder J9055209A
Specifications:
HANWHA Nozzle Holder J9055209A
S4 FC18-902722 SOCKET HEAD CAP SCREW M3*8 (NI/ZN)
S5 FC18-902745 SOCKET HEAD CAP SCREW M4*15 (NI/ZN)
S6 FC18-902751 SOCKET HEAD CAP SCREW M4*35 (NI/ZN)
S7 FC18-902728 SOCKET HEAD CAP SCREW M3*12 (NI/ZN)
1 FC15-000963A HEAD_TOP_COVER 1
2 AM03-005337C ASSY,BOARD-HEAD IF BOARD VER1.0 1 AM03-005337A / AM03-005337B
3 FC36-000186A PLATE-IO_BOARD_SHEET 1 FC30-000990A
4 FC29-900610 HEX SUPPORT 8
5 FC09-001574B BRACKET-HEAD_BOARD_BRACKET 1 FC09-001574A
6 FC09-002301A BRACKET-HEAD_BKT_PANEL 1
7 FC09-001568A BRACKET-FLAT_CABLE_BKT 1
8 FC09-001847A BRACKET-FITTING_BKT 1
9 J1301070 STRAIGHT_CONNETOR_FITTING 6
10 AM03-005341B ASSY,BOARD-MOTOR IF BOARD VER1.0 1 AM03-005341A
11 FC36-000187A PLATE-MOTOR_IF_BOARD_SHEET 1 FC30-000991A
12 FC09-001576A BRACKET-IF_BOARD_BKT 2
13 FC29-900148 HANDLE BG-10 1
14 FC09-001690A BRACKET-HEAD_BKT_FIX 1
15 FC30-001147A PLATE-REF_PLATE 1
16 J71541016A HARNESS_SUPPORT 2
Keywords:
Hanwha SM481 Plus Pick and Place Machine, Hanwha SM482 Plus Pick and Place Machine, Hanwha SM471 Plus Pick and Place Machine, Hanwha Decan S2 Plus Pick and Place Machine, Hanwha SM481 Plus SMT Assembly Line, Hanwha SM482 Plus SMT Assembly Line, Hanwha SM471 Plus SMT Assembly Line, Hanwha Decan S2 SMT Assembly Line.
