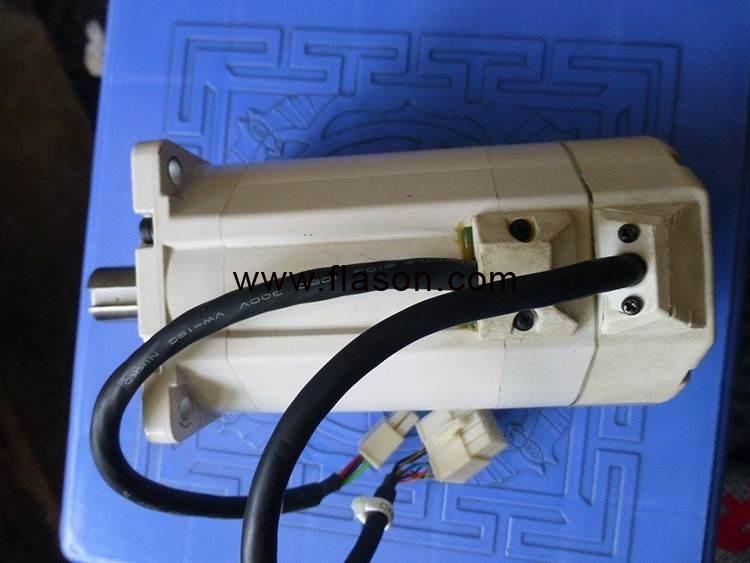

HANWHA SM320 321 411 421 431 X-axis motor MSMA082P1A
Specifications:
HANWHA SM320 321 411 421 431 X-axis motor MSMA082P1A
1 AM03-008031A CABLE ASSY-R1_MOTOR_MD038 5
2 FC09-001493A BRACKET-Z_SENSOR_DOG 1
3 FC29-004278A PIN 1 J7155541A
4 FC09-001491A Z_CAP 1
5 HP06-900059 BOB ELBOW FITTING 1
6 MC13-000268 LM GUIDE 1 MC13-000116
7 FC29-001047C HOUSING-Z_ROD_HOUSING 1 FC29-001047A/ FC29-001047B
8 FC09-001492B BRACKET-Z_BELT_CLAMP 1 FC09-001492A
9 FC09-001504A BRACKET-REF_PLATE 1
10 FC30-000797A PLATE-INSULATION_PLATE 1
11 FC30-000798A PLATE-STEP_MOTOR_PLATE 5 FC30-000927A
12 MC19-000340A PULLEY-R_MOTOR_PULLEY 1
13 AM03-015566A CABLE ASSY-CABLE ASSY-R_HOME_SENSOR 1 EP19-900134 / AM03-005582
14 MC05-000117 TIMING BELT 1 FC09-001501A Z1.3.5.7.9
15 MC05-000119 TIMING BELT 1 MC05-000117 Z2.4.6.8.10
16 FC09-001502B BRACKET-Z_IDLE_BODY 1 FC09-001502A
17 J6601140 BALL BEARING 2 J66011095A
18 J71551848A Z_IDLER_PULLEY 1 MC19-000341A
19 J70551874A Z_IDLE_SHAFT 1
20 HP07-000094A Y_PACKING 1
21 FC09-001490A BRACKET-LOCK_NUT_Z 1
22 FC18-001724A COVER-OPEN_DOOR_A 1 FC18-000960
23 MC03-900127 BALL BEARING 2
24 FC09-001489A BRACKET-Z_TOP_HOUSING 1
25 MC13-000172 SPLINE,BALL 1 MC13-000124
26 FC30-000927A PLATE-BEARING_P_PLATE 1
27 FC09-001494A BRACKET-S_PULLEY_CLAMP 1
28 FC18-000967 SCREW-T_SPINDLE_SCREW 1
Keywords:
Hanwha SM481 Plus Pick and Place Machine, Hanwha SM482 Plus Pick and Place Machine, Hanwha SM471 Plus Pick and Place Machine, Hanwha Decan S2 Plus Pick and Place Machine, Hanwha SM481 Plus SMT Assembly Line, Hanwha SM482 Plus SMT Assembly Line, Hanwha SM471 Plus SMT Assembly Line, Hanwha Decan S2 SMT Assembly Line.
