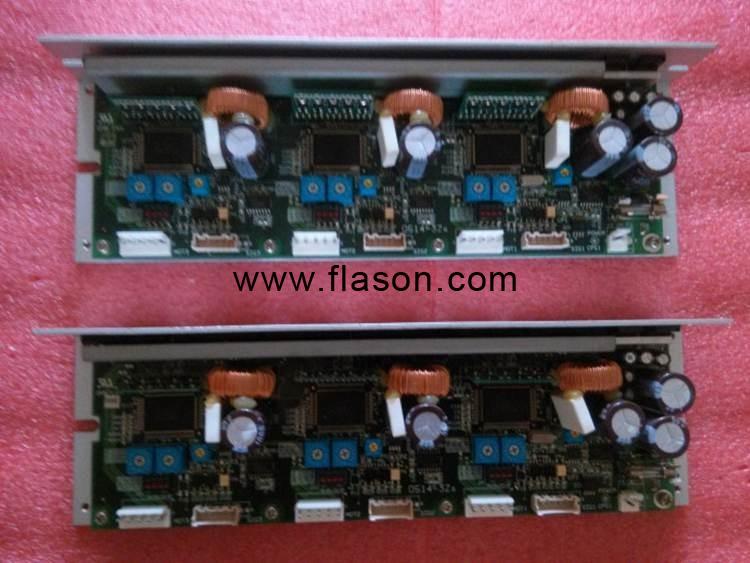

HANWHA SM321 411 421 R-axis drive R AXIS DRIVER MD355D
Specifications:
HANWHA SM321 411 421 R-axis drive R AXIS DRIVER MD355D
7 AM03-011868A CABLE ASSY-Z1_MOTOR_AS 10
8 FC09-004661A BRACKET-TIE_MOUNT_2 2
9 FC09-001558A BRACKET-TIE_MOUNT_1 2
10 FC09-001562A BRACKET-FLY_IO_TOP_COVER 1
11 FC09-001561C BRACKET-FLY_CAM_COVER 1 FC09-001561A
12 FC29-900610 HEX SUPPORT 6
13 AM06-000358B ASSY,PCB SMD-SM400_CAMERA_IO_BD 1 AM06-000358A
14 FC09-001563A BRACKET-FLY_IO_BOTTOM_COVER 1
15 J71551840A Z_MOTOR_PULLEY 10
16 FC09-004159A BRACKET-FID_BRACKET_1 1 FC09-001555A
17 AM03-020609A ASSY,BOARD-FIDUCIAL_OUTER_PCB_ASSY 1 STANDARD
AM06-005001A ASSY,PCB SMD-OUTER-LED_PCB ASS'Y_FID. CA 1 BLUE FILTER OPTION
18 FC09-001567A BRACKET-LIGHT_COVER 1
19 EP12-000029B MIRROR,OPTICS-SM411_PLUS_BEAM_SPLITTER 1 EP12-000029A
20 RM03-000022A PLASTICS-SM411_PLUS_COAXIAL_DIFFUSEER 1 EP12-000030A
21 AM03-005100C ASSY,OPTICS-SM411_PLUS__FLY_COAXIAL_PCB 1 AM03-005100B
22 FC09-001566A BRACKET-FLY_SIDE_COVER 2
23 FC09-001560A BRACKET-FLY_SIDE_PLATE2 1
24 FC09-001559A BRACKET-FLY_SIDE_PLATE1 1
25 FC09-001516A BRACKET-SM411_PLUS_FLY_OUTER_BRACKET_B 1
26 FC09-001848A BRACKET-COAXIAL_PLATE 1
27 FC09-001565B BRACKET-BS_CLAMP 2 FC09-001565A
28 FC36-001069A SHEET-FLY_IO_TOP_COVER 1
29 FC36-001068A SHEET-FLY_IO_BOTTOM_COVER 1
Keywords:
Hanwha SM481 Plus Pick and Place Machine, Hanwha SM482 Plus Pick and Place Machine, Hanwha SM471 Plus Pick and Place Machine, Hanwha Decan S2 Plus Pick and Place Machine, Hanwha SM481 Plus SMT Assembly Line, Hanwha SM482 Plus SMT Assembly Line, Hanwha SM471 Plus SMT Assembly Line, Hanwha Decan S2 SMT Assembly Line.
