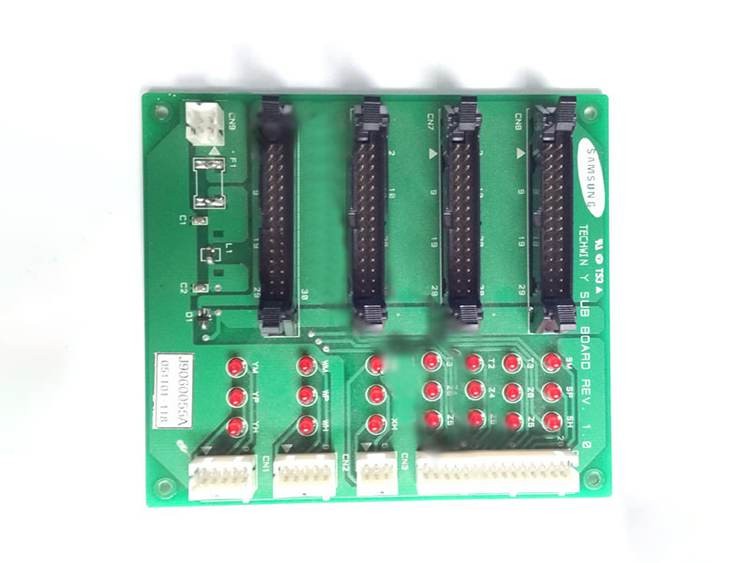

HANWHA Y interface board Y SUB BOARD J9060055A
Specifications:
HANWHA Y interface board Y SUB BOARD J9060055A
1 MC13-900173 BALL_SCREW SBK2030ZS-3.4GT+1230LC5 1
2 EP08-900158 SERVO_MOTOR MSMA102G2C 1 EP08-000139
3 FC14-900237 COUPLING[SFC 050DA 12B-19B(TYPE A)] 1
4 J70541031A COVER_Y_MOTOR_BLOCK 1
5 FC07-000386A Y_MOTOR_BLOCK 1 FC07-000386A
6 MC04-900028 SUPPORT UNIT[FK-15] 1
7 FC29-004431A STOPPER_Y_BALL_SCREW_FRONT 1 J72541006A
8 FC29-004432A STOPPER_Y_BALL_SCREW 1 J72541012A
9 J70541120C BS_REAR_SUPPORT 1
10 J70541121B BRG_INNER_SPACER 3
11 MC03-900060 ANGULAR_CONTACT_BALL_BEARING 7002CTYNDBM 2
12 J70541119B BRG_SUPPORT_X 1
13 J70541122B BRG OUTER SPACER 1
14 FC18-900917 BEARING NUT[RN15] 1
15 J70541123C BEARING COVER Y 1
16 EP19-900114 LIMIT SENSOR [EE-SX674] 3
17 MC13-900011 LM_GUIDE[SSR25XW2UU+1480LHY-II] 1
18 J70541115A COVER_BKT J70541115A 2
1 J70541115A COVER_BKT J70541115A 1
2 FC09-000980C BRACKET-Y_CABLE_DUCT;SS400 2 FC09-000980B
3 FC09-001880B BRACKET-SM421_Y_CABLE_DUCT;SPCC 1 FC09-001880A
4 J7354024A CABLE CUSHION Y[J7354024A] 1
5 J7054256A CUSHION BRACKET Y[J7054256A] 1
6 FC09-000671A BRACKET,CONNECTOR-CONNECTOR_PANEL_Y;SPCC 1
7 HP09-000148 MANIFOLD-AIR_KM11;PC 1
8 FC15-001496A COVER-Z_AMP_482;SPCC 1 FC15-001283A
9 FC18-902639 SEMUS NABE SCREW_M4*16 6
10 AM03-007228C ASSY,ELECTRIC-SM482_HDCB_ASSY 3 AM03-007228A / AM03-007228B
AM03-007226B Z-AXIS DRIVER(AMP, HDUB) 1 Upper side
AM03-007227A Z-AXIS DRIVER(AMP, HDLB) 1 Lower side
11 AM03-006409A CABLE ASSY-CABLE ASSY-LR_ZR_DRV_FAN 1
12 FC09-002205B BRACKET-Z_MOTOR_DRIVER_82;SPCC 1 FC09-002205A
13 TO03-001042A GRIPPER-40P_CONNECTOR_CLIP 3
14 HP06-000457 FITTING 1
