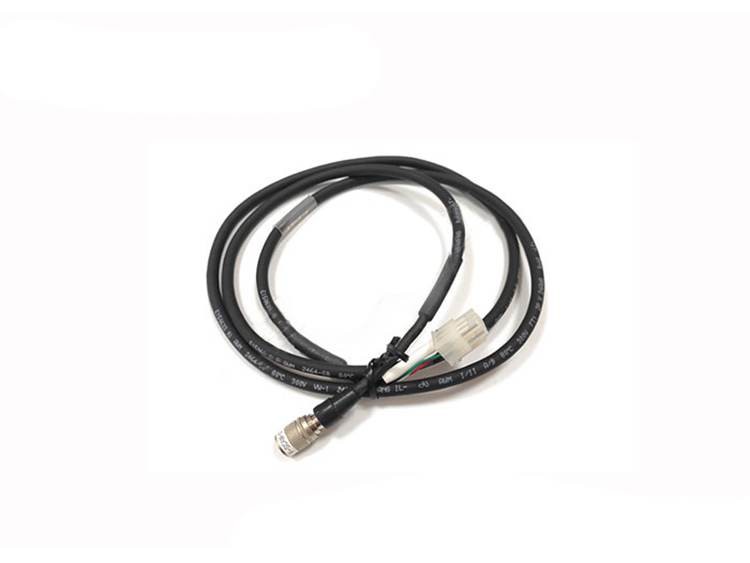

Hanwha AF ST CAMERA DIN CABLE VM-BASE-034 EP02-001129A HARNESS-VM
Specifications:
Hanwha AF ST CAMERA DIN CABLE VM-BASE-034 EP02-001129A HARNESS-VM
1 FC09-004582A BKT_TAIL 4 J70531024A
2 J72531002A BUSH_TAIL 4
3 FC09-004584A SUPPORT_BKT_L 4 J71531006B
J71531005B SUPPORT_BKT_S 4 FC09-004586A
4 J71531010C LM_BASE_R 2
5 MC13-900068 LM_GUIDE 2
6 FC29-002694D SUPPORT-DUMPBOX_1 2 FC29-002694C
7 EP20-900101 SW-D2HW_C243M-100 2
8 J72531005C DUMP_BOX 2
A AM03-017756A AIR_SHOWER_ASSY J90531115A 1 J90531115A OPTION
FC09-006376A BRACKET-SUPPORT F D 1 Dual Conveyor type Bracket (Front)
FC09-006377A BRACKET-SUPPORT F S 1 Single Conveyor type Bracket (Front)
FC09-006378A BRACKET-SUPPORT R 1 Sharing Bracket (Rear)
1 J7153373A FIDUCIAL_DISK 3
2 FC29-001514B GUIDE-PCB_GUIDE RC;SM45C 1 FC29-001514A
3 J71531024A WIDTH_PULLEY 1
4 J70531028A TENSION_BEARING_PIN 2
5 MC03-900121 BALL BEARING[F608ZZ] 2
6 MC03-900080 BALL BEARING[608ZZ] 2
7 J70531025A WIDTH_TENSION_SPACER 2
8 FC09-004587A TENSION_BRACKET 2 J70531027A
9 FC29-002750A SUPPORT_FIX_RAIL_R 1
10 FC29-900604 HEX SUPPORT 2 FC29-900611
11 EP19-900108 PHOTO SENSOR 1
12 FC18-900920 LOCK_NUT 2
13 J70531177A BUSHING 2
14 MC03-900008 BALL-BEARING-6000ZZ 2
15 MC13-900226 LEAD_SCREW 2
16 AM03-010796A CABLE ASSY-PCB_SENSOR 2
17 J70531644A BRACKET_WORK_SENSOR_H30 1
18 FC29-004427A STOPPER 2 2 J7253009B
19 FC39-001336A WORK_REAR_FRAME 1
20 J7153034A CLAMP SHAFT 2
