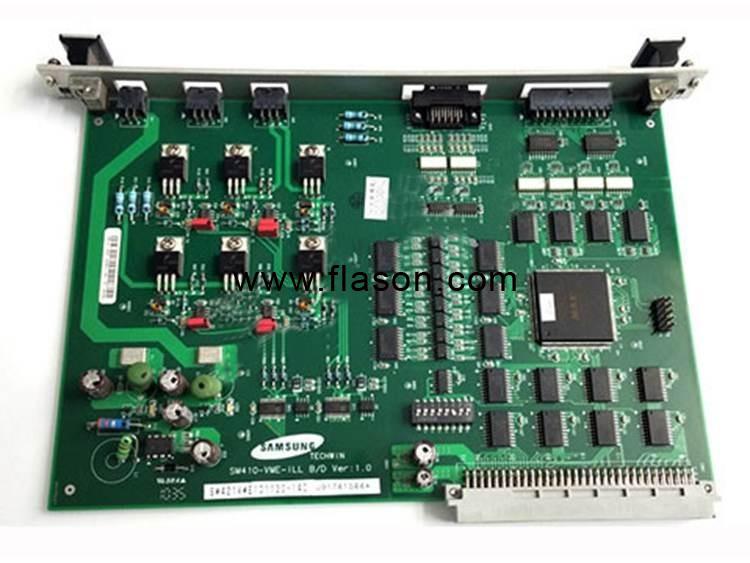

Hanwha SM421 VME light control board J91741044A B VME IO ILL
Specifications:
Hanwha SM421 VME light control board J91741044A B VME IO ILL
3 FC18-903479 FLAT WASHER [M5 (BL/ZN)] 8
4 FC18-902741 SOCKET HEAD CAP SCREW M4*10 (NI/ZN) 46
5 FC18-903490 SPRING WASHER [M4 (BL/ZN)] 79
6 FC18-903476 FLAT WASHER [M4 (BL/ZN)] 33
7 FC09-002125A BRACKET-SCREW_STAND_P;A6N01S-T5 2
8 FC18-902843 SOCKET SET SCREW [M3*5 (BL/ZN)] 8
9 MC03-900008 BALL BEARING [6000ZZ] 4
10 FC18-902754 SOCKET HEAD CAP SCREW M5*10 (NI/ZN) 2
11 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 14
12 EP19-900114 LIMIT SENSOR [EE-SX674] 1
13 FC18-900900 HEX NUT 1
14 FC18-901930 FLAT HEAD CAP SCREW M3*6 (BL/Zn) 12
15 FC18-900870 LOW PROFILE MOUNTS[DALM5 (NYLON)] 12
16 FC18-902757 SOCKET HEAD CAP SCREW M5*15 (NI/ZN) 20
17 MC13-900029 LM GUIDE[SBG20-SL-1-575-N] 2
18 FC05-000451A BASE-WIDE_ADJUST 2
19 FC09-002126B BRACKET-MOVE_STAND_P;A6N01S-T5 2 FC09-002126A
20 FC09-002133A BRACKET-DOG-SENSOR_P;SPCC 1
21 FC18-903470 CONICAL SPRING WASHER M5 (BL/Zn) 16
22 FC18-902763 SOCKET HEAD CAP SCREW M5*25 (NI/ZN) 16
23 MC13-000042A SCREW,LEAD-SM421_P;SCM435 2
24 J7053128A SPACER NUT 8
25 FC18-902745 SOCKET HEAD CAP SCREW M4*15 (NI/ZN) 8
26 FC09-002124A BRACKET-FIX_STAND_P;A6N01S-T5 2
27 J7053194A BEARING NUT [J7053194A] 2
28 MC19-900014 PULLEY-WIDTH [20-XL-025] 2
29 J70530660B TENSION BKT J70530660B 2
30 FC18-902811 BUTTON HEAD SOCKET SCREW M5*25 (NI/ZN) 4
31 MC03-900080 BALL BEARING[608ZZ] 2
