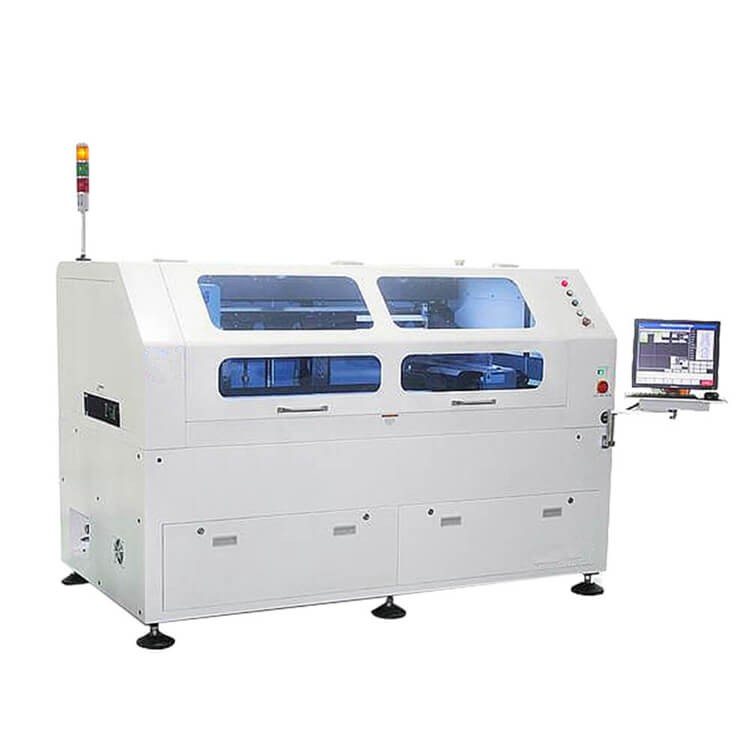

Inline 1200mm SMT Stencil Printer L12

Power Supply: AC:220±10%,50/60HZ
Control Method: PC Control
PCB Size/Max:1200*340mm
Weight Approx:1500Kg

Inline 1200mm SMT Stencil Printer L12

Specifications:

Inline 1200mm SMT Stencil Printer L12

1. Product Functions

F-1200 a high accuracy lengthen printing robot designed for screen printing or stencil printing in SMT industry.

2. Product Features

a) Support wide spectrums of PCB size from 50mm x 50mm to 1200mm x 340mm and PCB thickness from 0.6mm to 6mm.

b) High printing resolution:

1. High positioning accuracy, repeat positioning accuracy ±0.01mm; printing accuracy 0.025mm.

2. Support glue printing

c) Automatic control improves production efficiency, controls quality and saves production cost:

1. Automatic stencil positioning;

2. Automatic PCB position calibrating.

3. Automatic adjustment of squeegee pressure;

4. Automatic printing;

5. Automatic stencil cleaning (dry-type, wet-type);

d) Adopt company independently developed suspended print head with programmable pressure adjustment. Support on-line real time pressure feedback and automatic squeegee pressure balancing.

e) Programmable motor controls separation speed and distance among squeegee, stencil and substrate, to realize multi-method separation.

f) Multi-functional PCB positioning and clamping system, for convenient fast and accurate PCB positioning.

g) Upward and downward visual positioning.

h) Built-in image processing system;

i) Support 2D, SPC functions.

3. Applicable pitches of Components

a) SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications.

b) IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3 mm; support BGA, CSP packaging, min. ball 0.2 mm.

c) Printing size?80mm x 50mm ~1200 mm x 340 mm;

d) PCB thickness: 0.6 mm ~ 6 mm

e) FPC thickness: less than 0.6 mm (excluding jig)

4. Applicable PCB Types

Applicable to PCB types of LED, mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics, medical power equipment, space flight and aviation, as well as production and processing of general electronics products

Items


Parameters

Repeat Position Accuracy

±0.01mm

Printing Accuracy

±0.025mm

Printing Speed/Cycle Time

<15s (Exclude Printing & Cleaning)

Products Changeover

<5Min

Screen Stencil Size/Min

1100mm*300(Standard)?730mm*300mm(Optional, pressing plate on guide rail shall be replaced)

Screen Stencil Size/Max

1500mm*750mm

Screen Stencil Thickness

20mm ~ 40mm

PCB Size/Min

80*50mm

PCB Size/Max

1200*340mm

PCB Thickness

0.8~6mm

PCB Warpage Ratio

1%Based on diagonal length?

Bottom of Board Size

15mm (distance from pins to PCB)

Edge of Board Size

3mm (distance before PCB clamping)

Transport High

900±40mm

Transport Direction

Left-Right; Right-Left; Left-Left; Right-Right

Transport Speed

50-1200mm/sec programmable control

Board Location

Support System

Magnetic pin/Side support block/Flexible automatic pin?optional?


Clamping System

Elastic side clamping/Vacuum nozzle/Extension-type Z-direction tableting

Print head

Programmable motor driven print head (pneumatic control print head: optional)

Squeegee Speed

10~200mm/sec

Squeegee Pressure

0-15kg programmable control

Squeegee Angle

60°(Standard )/55°/45°

Squeegee Type

Steel squeegee (standard), rubber squeegee, and customizable other types of squeegee .

Stencil Separation Speed

0.1~20mm/sec Programmable

Cleaning Method

Dry-type, wet-type, optional vacuum-type

Table Adjustment Range

X:±10mm;Y:±10mm;?:±2°

Type of Fiducial Mark

Standard geometry shape of fiducial point, bonding pad / stencil hole

Camera System

Single digital camera with upward/downward vision system

Air Pressure

4~6Kg/cm2

Air Consumption

About 0.07m³/min

Control Method

PC Control

Power Supply

AC:220±10%,50/60HZ 1? 1.5KW

Machine Dimensions

2220(W) *1220(D) *1500(H)mm (excluding the height of indicating lighthouse)

Weight

Approx:1500Kg

Operation Temperature

-20°C ~ +45°C

Operation Humidity

30%~60%

Keywords:

Hanwha SM481 Plus Pick and Place MachineHanwha SM482 Plus Pick and Place MachineHanwha SM471 Plus Pick and Place MachineHanwha Decan S2 Plus Pick and Place MachineHanwha SM481 Plus SMT Assembly LineHanwha SM482 Plus SMT Assembly LineHanwha SM471 Plus SMT Assembly LineHanwha Decan S2 SMT Assembly Line.

We provide Hanwha SMT assembly line solutions, including Hanwha Assembly Line Equipments Hanwha productsHanwha Pick and Place MachineHanwha SMT Stencil PrinterHanwha Assembly LineHanwha SMT Reflow OvenHanwha SMT Inspection MachineHanwha SMT Spare PartsHanwha SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
