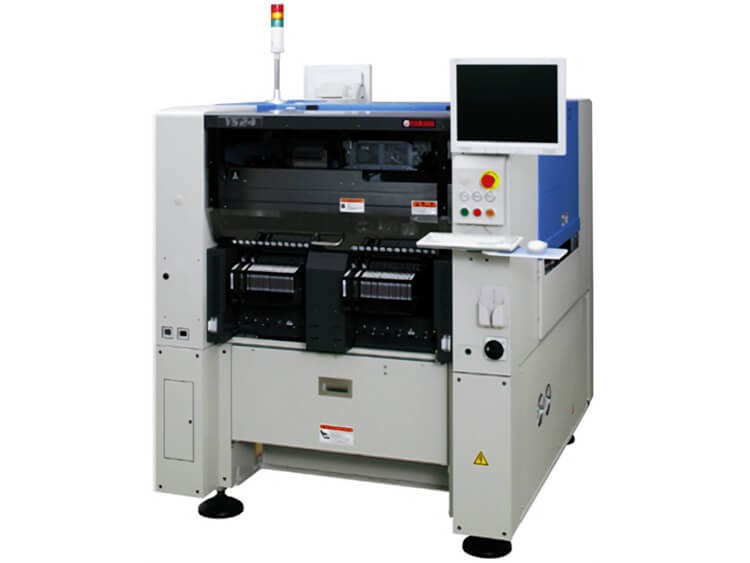

YAMAHA YS24 Pick and Place Machine

Mounting Capability: 72,000 CPH
Board size: L50xW50mm to L700xW460mm
Applicable Components: 0402 to 32x32mm MAX (Height 6.5mm or less)
Weight: Approx. 1,700KG

YAMAHA YS24 Pick and Place Machine

Specifications:

YAMAHA YS24 Pick and Place Machine

Compact -Super-High -Speed Modular

Features:

72,000CPH (0.05sec/CHIP)

34kCPH/(Area-productivity, top class in the world)

L700 x W460mm (Super large PCB applicable)

YAMAHA Dual Lane System applicable

120 Max feeder capacity

0402 to 32 x 32mm(Components applicable)

Model

YAMAHA YS24

Applicable PCB

L50xW50mm –to L700xW460mm

Mounting accuracy

+/-0.05mm ( + 3sigma), +/-0.03mm (3sigma)

Speed

72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor)

Applicable components

0402 to 32x32mm MAX (Height 6.5mm or less)

Component Types

120 types (Max./8mm wide tape reel conversion)

Power supply

Three phase AC 200/208/220/240/380/400/416 V +/-10%

Air supply source

0.45MPa

External dimension

L1,254x W1,687x H1,445mm (Excluding protrusions)

Weight

Approx. 1,700kg

Keywords:

Hanwha SM481 Plus Pick and Place MachineHanwha SM482 Plus Pick and Place MachineHanwha SM471 Plus Pick and Place MachineHanwha Decan S2 Plus Pick and Place MachineHanwha SM481 Plus SMT Assembly LineHanwha SM482 Plus SMT Assembly LineHanwha SM471 Plus SMT Assembly LineHanwha Decan S2 SMT Assembly Line.

We provide Hanwha SMT assembly line solutions, including Hanwha Assembly Line Equipments Hanwha productsHanwha Pick and Place MachineHanwha SMT Stencil PrinterHanwha Assembly LineHanwha SMT Reflow OvenHanwha SMT Inspection MachineHanwha SMT Spare PartsHanwha SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
