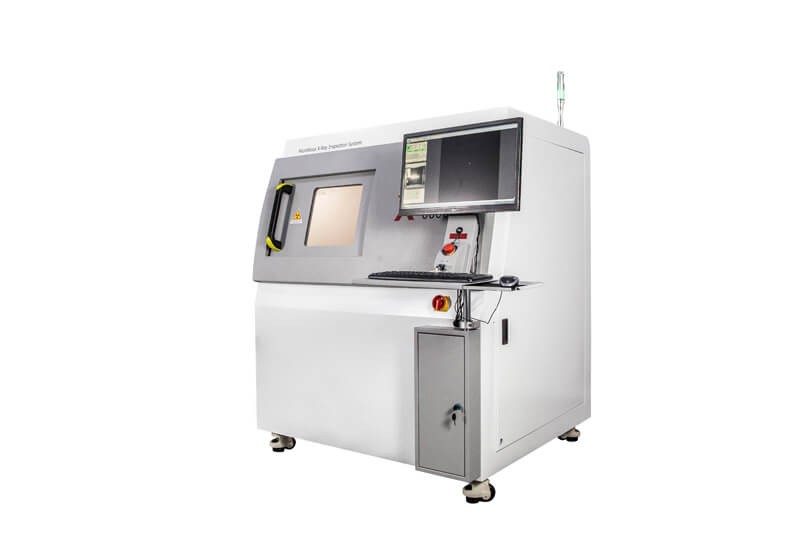

SMT PCB X Ray machine X-6600

Stage size 640mm*540mm
Resolution 1176*1104
Dimension L:1360mm,W:1360mm,H:1650mm

SMT PCB X Ray machine X-6600

Specifications:

SMT PCB X Ray machine X-6600

Application Field
1.Semiconductor package
2.Electronic connector module
3.Die Casting
4.Cars
5.Battery
6.LED
7.PCB'A
8.Other application

Functions

Editable detecting procedures

large batch detecting

Detectors maximum inclination 70 °

Semiautomatic to identify OK / NG  in Products


Large navigation window, mouse clicks can move the stage to a position that you need.

High accuracy detection



Can meet the size for kinds of samples



allows a unique perspective to detect sample


Technical Parameters

X-RAY launching tube

Maximum tube voltage

90kV

Focal size

5um


Magnification

 magnification1000X


Detector

Resolution

1176*1104

Tilting


Stage size

640mm*540mm

Dimension

L1360mm,W1360mm,H1650mm

Net weight

1200kg

international general power supply


Total power

1.5Kw

Standard configuration

Items

Quantity

Unit

Remark

90KV-5umSealed type X ray Tube

1

PCS


Stage

1

PCS

Size640mm*540mm

Flat Panel Detector

1

PCS

High definition

Image processor CPU

1

PCS


’’

Keywords:

Hanwha SM481 Plus Pick and Place MachineHanwha SM482 Plus Pick and Place MachineHanwha SM471 Plus Pick and Place MachineHanwha Decan S2 Plus Pick and Place MachineHanwha SM481 Plus SMT Assembly LineHanwha SM482 Plus SMT Assembly LineHanwha SM471 Plus SMT Assembly LineHanwha Decan S2 SMT Assembly Line.

We provide Hanwha SMT assembly line solutions, including Hanwha Assembly Line Equipments Hanwha productsHanwha Pick and Place MachineHanwha SMT Stencil PrinterHanwha Assembly LineHanwha SMT Reflow OvenHanwha SMT Inspection MachineHanwha SMT Spare PartsHanwha SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
