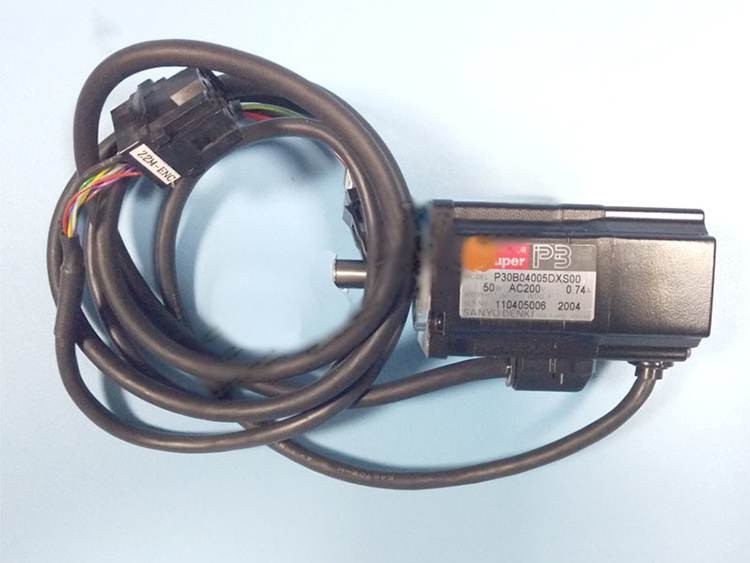

HANWHA CP45 Z-axis motor J9061962A A-AS P030B04005DXS00

HANWHA CP45 Z-axis motor J9061962A A-AS P030B04005DXS00


HANWHA CP45 Z-axis motor J9061962A A-AS P030B04005DXS00

1 FC14-900724 PLUG 2

2 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 4

3 HP06-900299 COUPLER[KD-M5-SA34697KR] 1

4 HP14-900090 SPEED CON[ASP330F-01-06S] 1

5 HP06-900048 ELBOW FITTING [KQ2L06-M5] 1

6 HP06-900293 ELBOW FITTING[PT18EF] 2

7 FC14-900724 PLUG [PT 1/8] 3

8 HP06-900050 UNION Y FITTING [KQ2U04-06] 1

9 HP14-900092 CHECK VALVE[AKH06-00] 1

10 HP06-900018 FITTING [KQ2U06-00/PY6M] 5

11 HP06-900014 FITTING [KQ2L06-01/PL6-01] 5

12 HP14-900026 SOLENOID VALVE [K180-4E1-21-DC24V] 1

A-1 AM03-014979A BACK UP TABLE ASSY 1 J9053342A


2 J7053792A UPPER LINK PIN[J7053792A] 6

3 J7053793A LOWER LINK PIN[J7053793A] 2

4 J7053796A LOWER LINK SHAFT[J7053796A] 1

5 J71530419B UPPER DRIVING LINK[J7153419A] 1

6 J90531008A LINK_END_ASSYV 2

7 J70530797B LOWER LINK END 1 J7053797A

8 MC03-900098 BALL_BEARING 688ZZ 1

9 J90531004A FREE_LINK_ASSY 2

10 J71530418B UPPER FREE LINK J71530418B 1 J7153418A



14 J7053795A RING FIXER[J7053795A] 3

15 FC14-900506 CYLINDER JOINT[Y-032B] 1

16 HP03-900013 ELBOW FITTING KQ2L04-01/SQL04-01S-W 1

17 HP06-900056 ELBOW FITTING KQ2L04-01/SQL04-01S-W 2

18 J70530800C LOWER PLATE 1


20 J7053790A LOWER BEARING HOLDER[J7053790A] 1

21 J70530801D BACK UP PLATE 1 J70530801C


23 J7053791A UPPER BEARING HOLDER[J7053791A] 1

24 FC29-900536 URETHAN CUSHION[AXNSK15-40] 2

26 FC38-900013 SPRING[SWU26-70] 1

27 FC18-901994 SHOULDER SCREW[MSB6-40] 2
