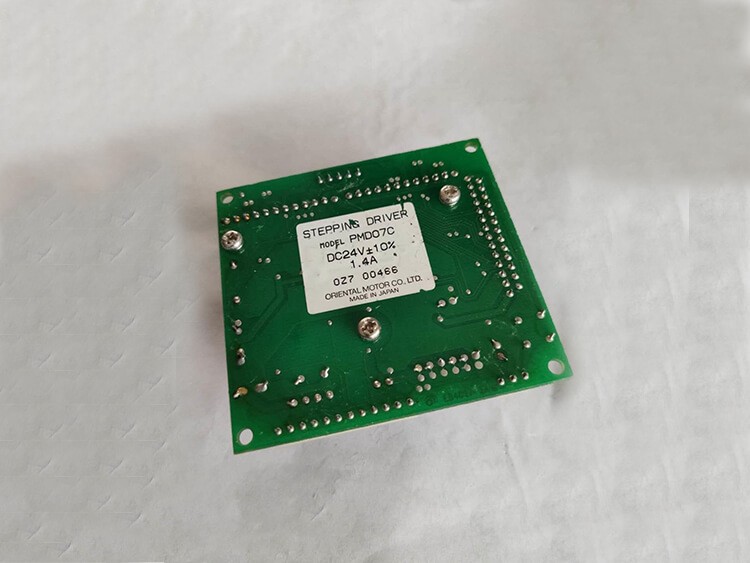

HANWHA Driver Chuck PMD07C J1300544 EP06-900081

HANWHA Driver Chuck PMD07C J1300544 EP06-900081


HANWHA Driver Chuck PMD07C J1300544 EP06-900081

1 MC13-000125 SCREW,BALL 2

2 FC29-001079A SUPPORT-B SCREW X 1

3 J71541010A BRG_HOUSING-X 1

4 FC18-901667 C-RING [10mm (SHAFT)] 1

5 MC03-900008 BALL BEARING 1

6 FC29-004430A CUSHION_X_REAR 1 J72541005B

7 FC29-004428A CUSHION_X_FRONT 1 J72541003A

8 MC04-900012 SUPPORT_UNIT 1

9 FC14-900236 COUPLING 1


11 FC15-000972B COVER CABLE X 1

13 EP08-001066 MOTOR,SERVO 1 EP08-900157

14 HP06-900078 ELBOW_UNION 1


1 MC13-900160 Y-BALL_SCREW 2

2 J70541006C BS_REAR_SUPPORT 2

3 J70541030A BRG_HOUSING_Y 2

4 MC03-900027 BALL BEARING 2

5 FC29-001076B STOPPER-STOPPER Y BS REAR 2 FC29-001076A

6 FC29-004431A STOPPER_Y_BALL_SCREW_FRONT 2 J72541006A

7 MC04-900028 SUPPORT UNIT 2

8 J70541005C Y_MOTOR_BLOCK 2 FC07-000386A

9 FC14-900237 COUPLING 4

10 EP08-900158 SERVO_MOTOR 4 EP08-900158 / EP08-000139

11 J70541366A SIDE_COVER_BKT-2 1

12 FC09-001720A BRACKET-SIDE COVER 1 1

13 FC18-901665 C-RING (SHAFT) 1

14 J70541009A SENSOR_BKT_HOME-Y 1

15 EP19-900114 LIMIT SENSOR 3

16 FC09-001507A BRACKET-BKT SNS Y 1
