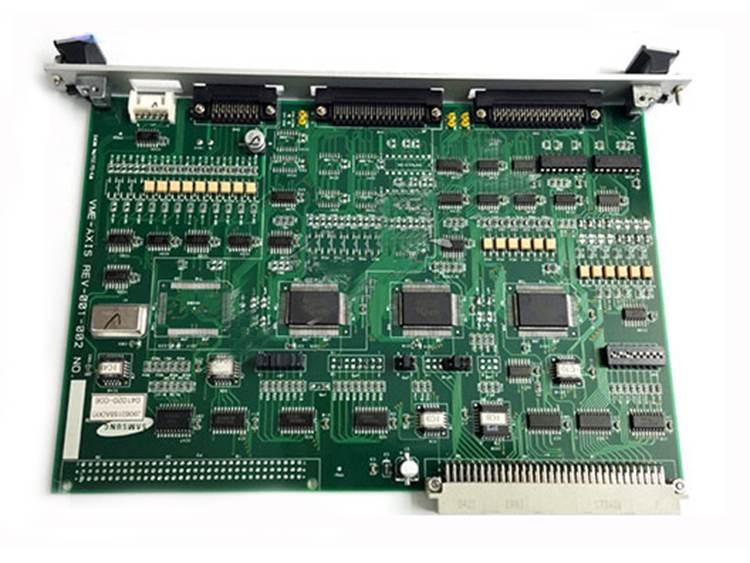

Hanwha CP45 VME shaft 3 plates J9060158A B REV-001-002

Hanwha CP45 VME shaft 3 plates J9060158A B REV-001-002


Hanwha CP45 VME shaft 3 plates J9060158A B REV-001-002

1 FC18-902761 SOCKET HEAD CAP SCREW M5*20 (NI/ZN) 13

2 FC18-903492 SPRING WASHER [M5 (BL/ZN)] 16

3 FC18-903479 FLAT WASHER [M5 (BL/ZN)] 8

4 FC18-902741 SOCKET HEAD CAP SCREW M4*10 (NI/ZN) 46

5 FC18-903490 SPRING WASHER [M4 (BL/ZN)] 79

6 FC18-903476 FLAT WASHER [M4 (BL/ZN)] 33


8 FC18-902843 SOCKET SET SCREW [M3*5 (BL/ZN)] 8

9 MC03-900008 BALL BEARING [6000ZZ] 4

10 FC18-902754 SOCKET HEAD CAP SCREW M5*10 (NI/ZN) 2

11 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 14

12 EP19-900114 LIMIT SENSOR [EE-SX674] 1

13 FC18-900900 HEX NUT 1

14 FC18-901930 FLAT HEAD CAP SCREW M3*6 (BL/Zn) 12


16 FC18-902757 SOCKET HEAD CAP SCREW M5*15 (NI/ZN) 20

17 MC13-900029 LM GUIDE[SBG20-SL-1-575-N] 2

18 FC05-000451A BASE-WIDE_ADJUST 2

19 FC09-002126B BRACKET-MOVE_STAND_P;A6N01S-T5 2 FC09-002126A


21 FC18-903470 CONICAL SPRING WASHER M5 (BL/Zn) 16

22 FC18-902763 SOCKET HEAD CAP SCREW M5*25 (NI/ZN) 16

23 MC13-000042A SCREW,LEAD-SM421_P;SCM435 2

24 J7053128A SPACER NUT 8

25 FC18-902745 SOCKET HEAD CAP SCREW M4*15 (NI/ZN) 8

26 FC09-002124A BRACKET-FIX_STAND_P;A6N01S-T5 2

27 J7053194A BEARING NUT [J7053194A] 2

28 MC19-900014 PULLEY-WIDTH [20-XL-025] 2


Hanwha SM481 Plus Pick and Place MachineHanwha SM482 Plus Pick and Place MachineHanwha SM471 Plus Pick and Place MachineHanwha Decan S2 Plus Pick and Place MachineHanwha SM481 Plus SMT Assembly LineHanwha SM482 Plus SMT Assembly LineHanwha SM471 Plus SMT Assembly LineHanwha Decan S2 SMT Assembly Line.

We provide Hanwha SMT assembly line solutions, including Hanwha Assembly Line Equipments Hanwha productsHanwha Pick and Place Machine MachineHanwha SMT Stencil PrinterHanwha Assembly LineHanwha SMT Reflow OvenHanwha SMT Inspection MachineHanwha SMT Spare PartsHanwha SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: Tommy wechat whatsapp:+8613691605420, Email: sales@flason.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
