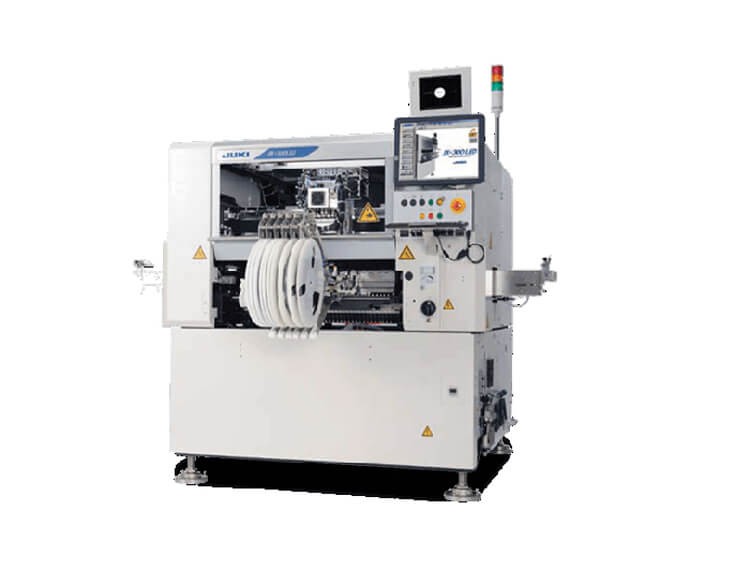

JUKI JX-300 LED Pick and Place Machine

BOARD SIZE:50 X 50 ~ 1,200 X 360mm
Mounting Speed: 18,300 CPH
components ranging: 0603(0201) ~ 33.5mm
FEEDER INPUTS:Max.40 in case of 8mm tape

JUKI JX-300 LED Pick and Place Machine


JUKI JX-300 LED Pick and Place Machine

The new JX-300 LED Mounter offers a flexible placement system specially designed for LED lighting products and mid- to large LCD display backlights.

It can support ultra-long boards up to 1,500mm and JUKI laser centering for high speed, high accuracy placement offers the best in the industry.

Ultra-Long Board Support

High Speed

High Accuracy

Support Ultra-Long Boards up-to 1,500mm

High-speed clamping system reduces transport time for long and super-long boards.

Laser Centering for High Speed, High Accuracy

Head moves directly from the pick position to the placement position.

Wide Variety of Special Nozzles for LEDs

Nozzles specifically designed for LEDs.

Unique Features for Flexibility

Accurate Placement even without fiducial marks.


Standard Specification:

50 X 50 ~ 1,200 X 360mm

Longer Sized PWB:

50 X 50 ~ 1,500 X 360mm


Component Height:6mm/12mm

Component Size:Laser Recognition:0603(0201) ~ 33.5mm

FEEDER INPUTS:Max.40 in case of 8mm tape


Placement Speed (chip):

• Optimum: 23,300CPH

• IPC9850: 18,300 CPH

Placement Accuracy:
