SMT Camera Module Cleaning Machine CMC

Cleaning method Two fluid cleansing
Cleaning plate specifications Custom
Equipment dimensions 880mm(L)×960mm(W)×1880mm
Net weight of machine 450KG

SMT Camera Module Cleaning Machine CMC


SMT Camera Module Cleaning Machine CMC

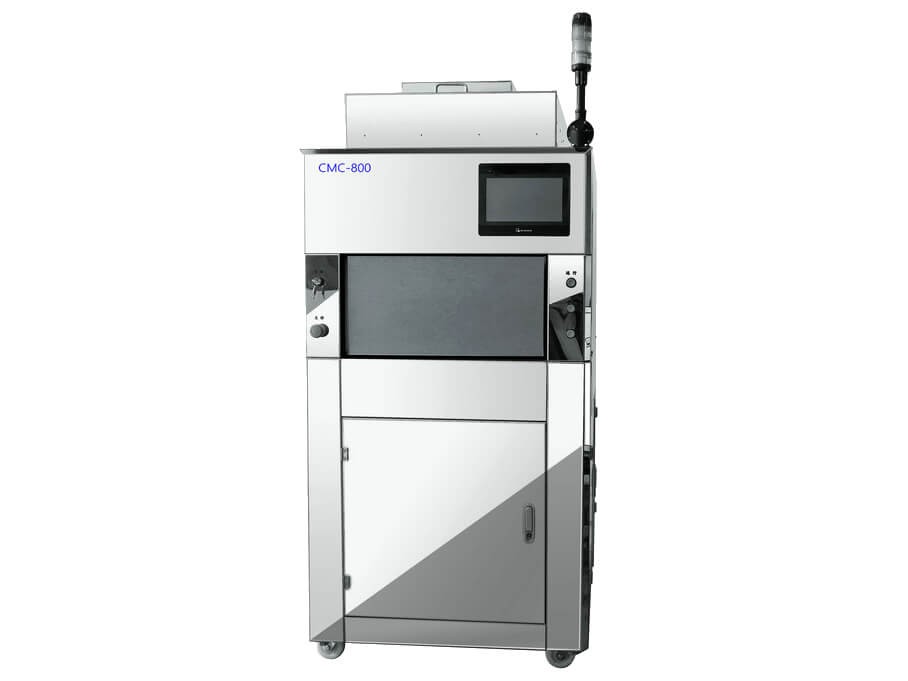

CMC-800 is a camera module professional cleaning machine for the camera products, such as wafer, CMOS, Holder and other surface dust cleaning.

Machine Features:

1.the camera class module surface dust, impurities for cleaning machines;

2.mirror stainless steel integration closed body, no pollution of the working environment, suitable for use of clean room requirements;

3.can replace the cleaning plate cleaning a variety of products, cleaning discs by product custom;

4.PLC automatic control, easy to operate;

5.transparent explosion-proof front door, safe operation, easy to observe;

6.the whole system instrument display, at any time to monitor the cleaning situation;

7.the use of two fluid cleaning, cleaning high precision, zero damage to the product, pure water consumption is minimal;

8.rotating spray bar, to avoid secondary pollution products;

9.equipped with static elimination device, cavity wall heating device, auxiliary cleaning to achieve the best results;

10.equipped with 2 air filtration system, compressed air in line with ISO8573, 1 standard;

11.body compact, small footprint;

12.full use of ultra-pure water cleaning, RoHS-compliant.

Equipment dimensions


Cleaning plate specifications

Custom (cleaning disc diameter <ø550mm)

Cleaning method

Two fluid cleansing

Dry way

High-speed centrifugal drying

power supply

AC380V 50HZ

Total power


power consumption

When cleaning: 3.5kw / h

Standby: 1kw / h

Drive horsepower


Environmental filtering


Air filter


Centrifugal speed


Pure water consumption


Gas consumption


Cleaning pressure

Liquid pressure: 3-8Kgf / cm² Air pressure: 0.2-0.5Mpa

DI water supply

Flow:> 7LPM Resistivity:> 17MΩ

Air supply

Pressure: 0.45-0.7Mpa; flow:> 30m ³ / H (cleanliness meet the cleaning requirements)

Pure water inlet diameter

Ø12mm hose or PT1 / 2 "internal thread

Air inlet diameter

Ø12mm trachea

Drain outlet diameter

PT 1 "internal thread

Outlet diameter

4 "× 2 (need to strengthen the ventilation, wind speed greater than 3m / sec)

Net weight of machine
